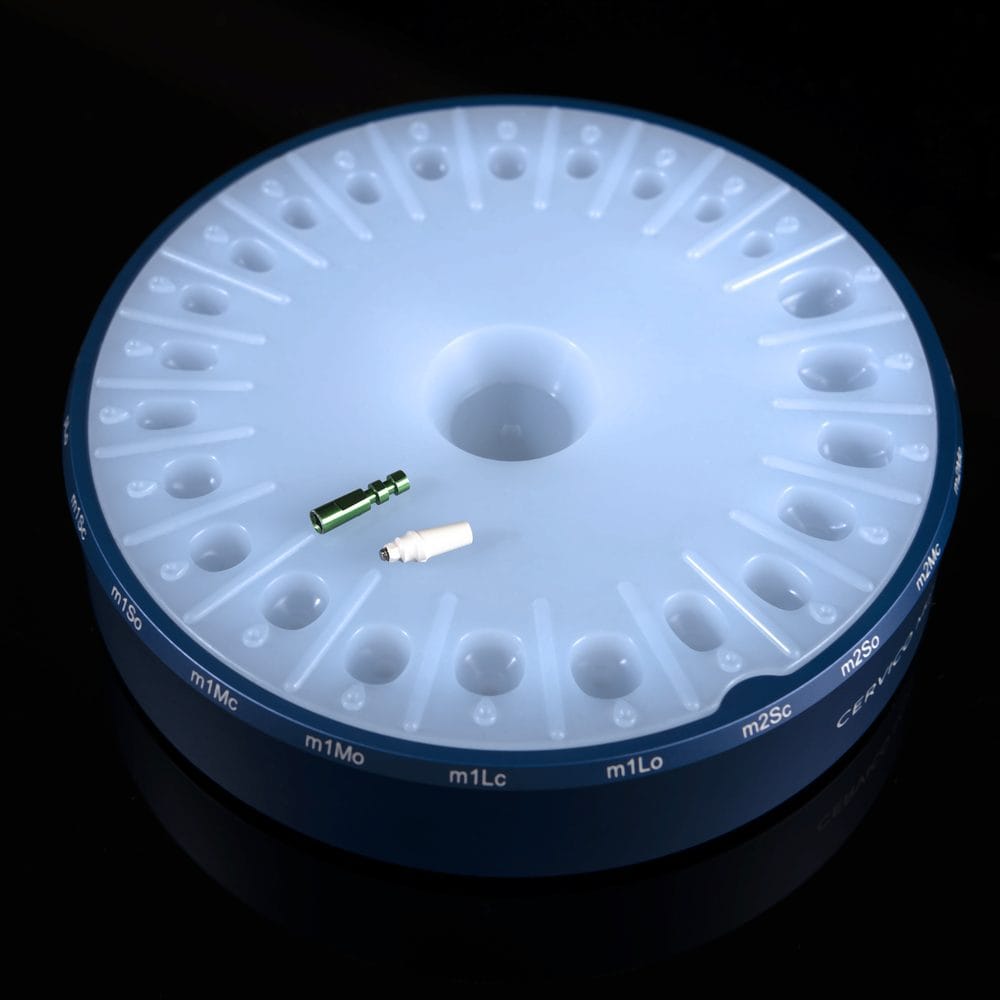

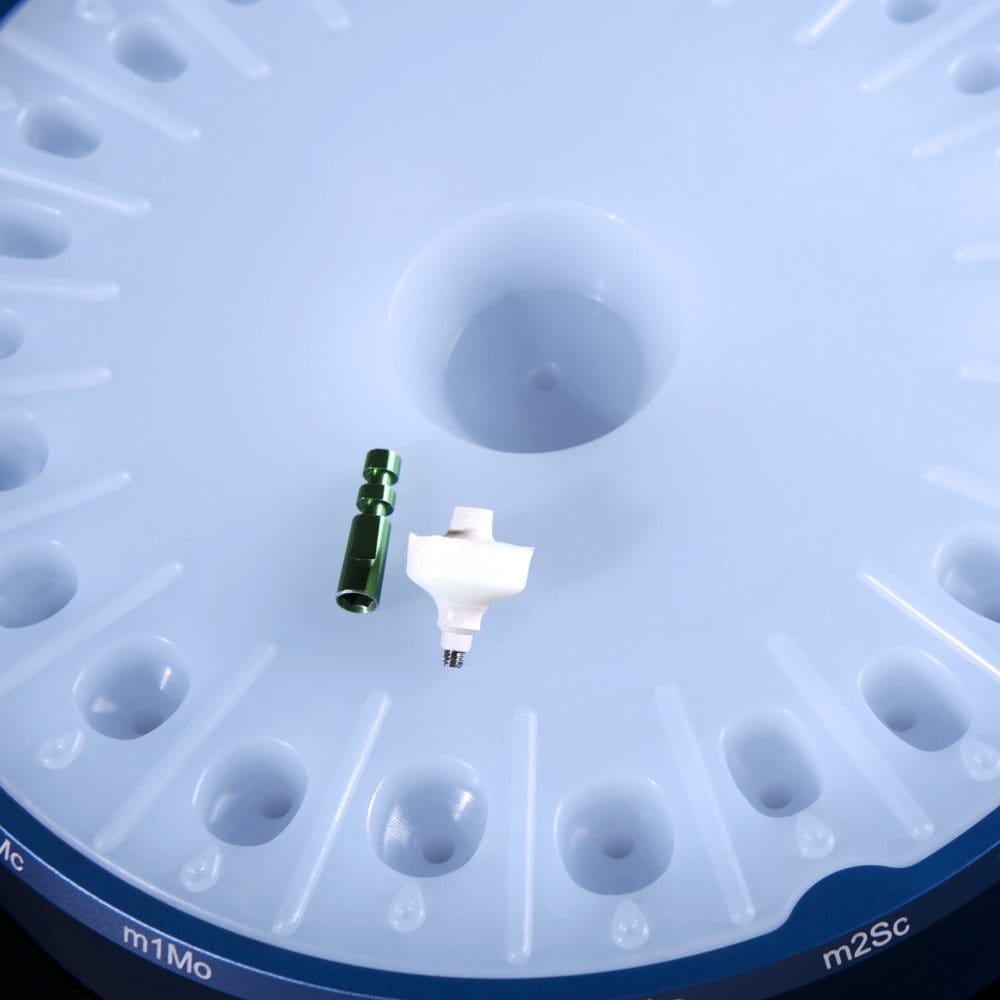

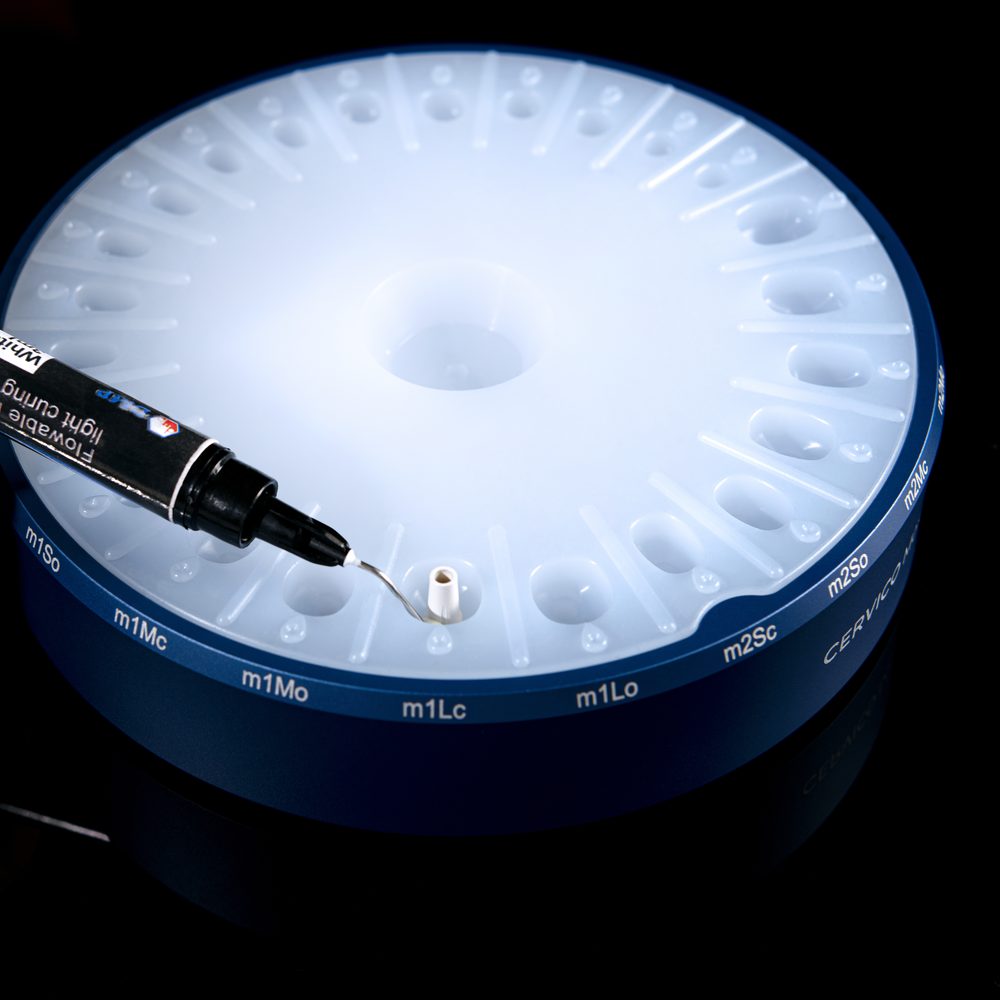

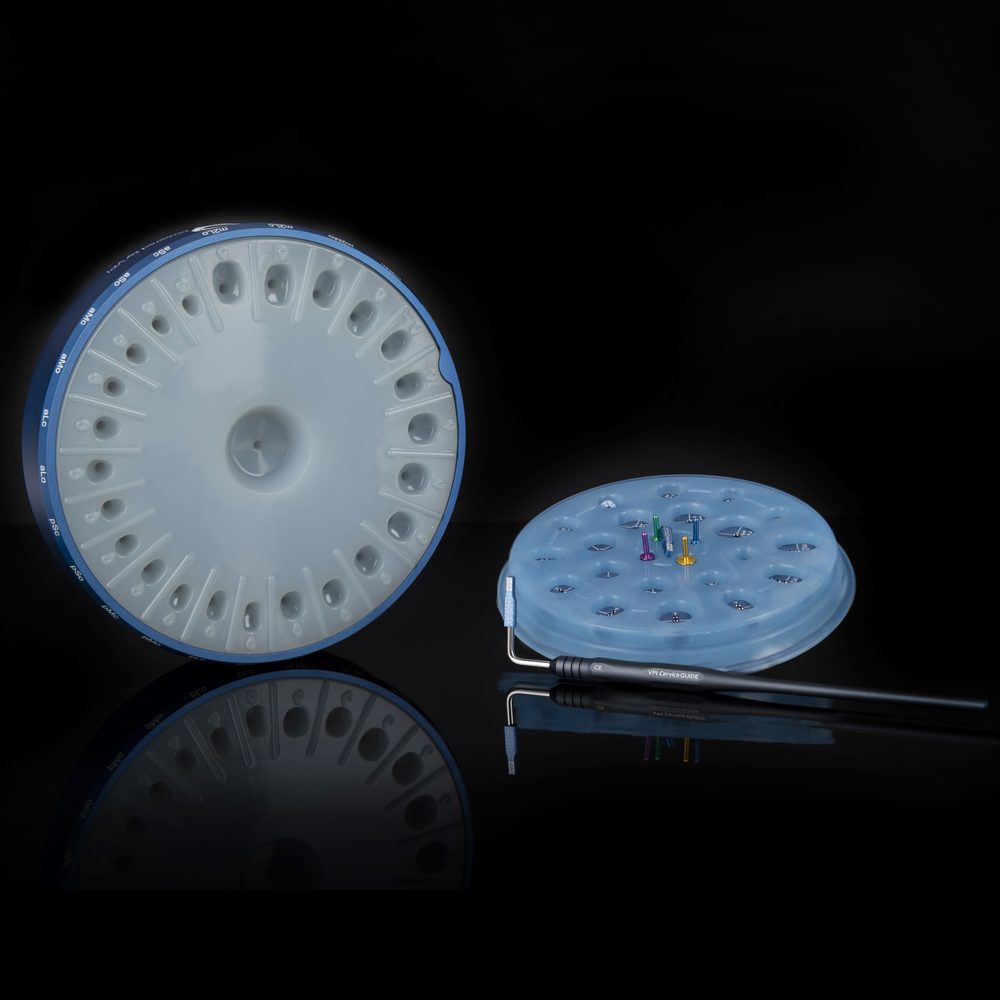

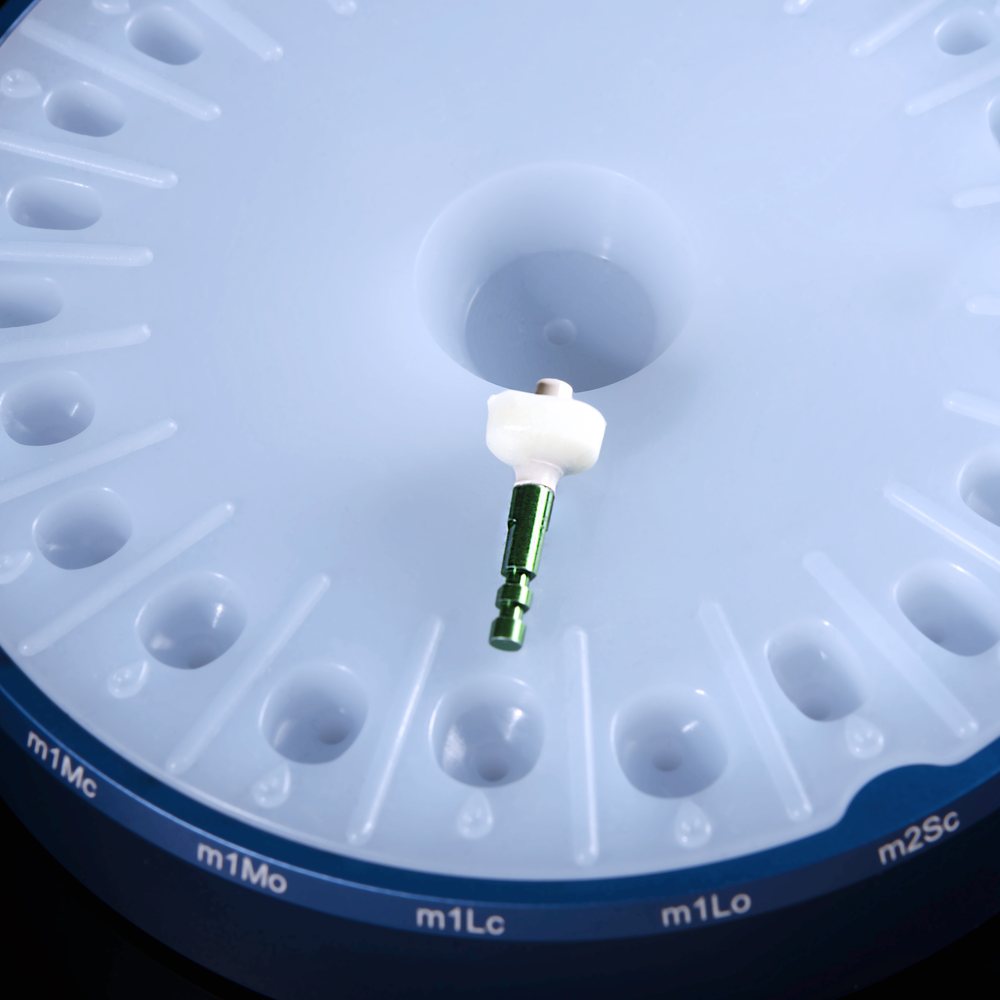

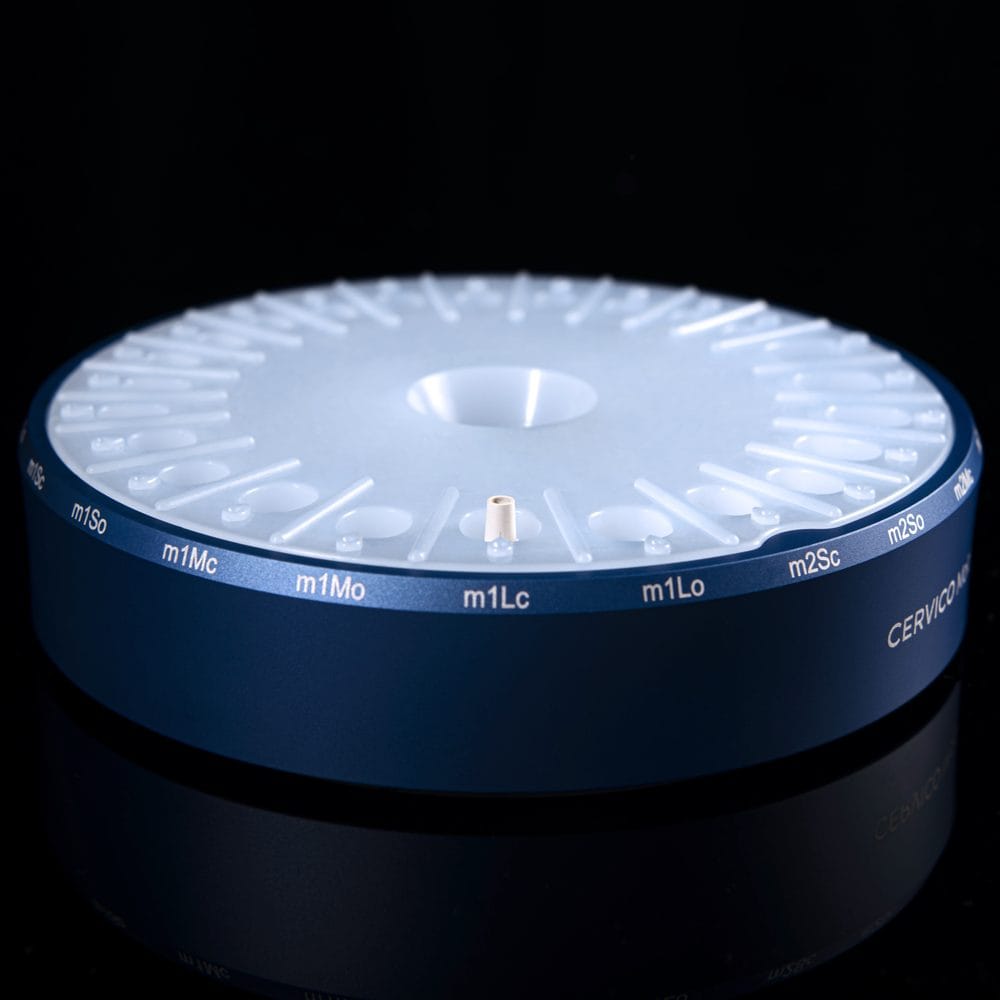

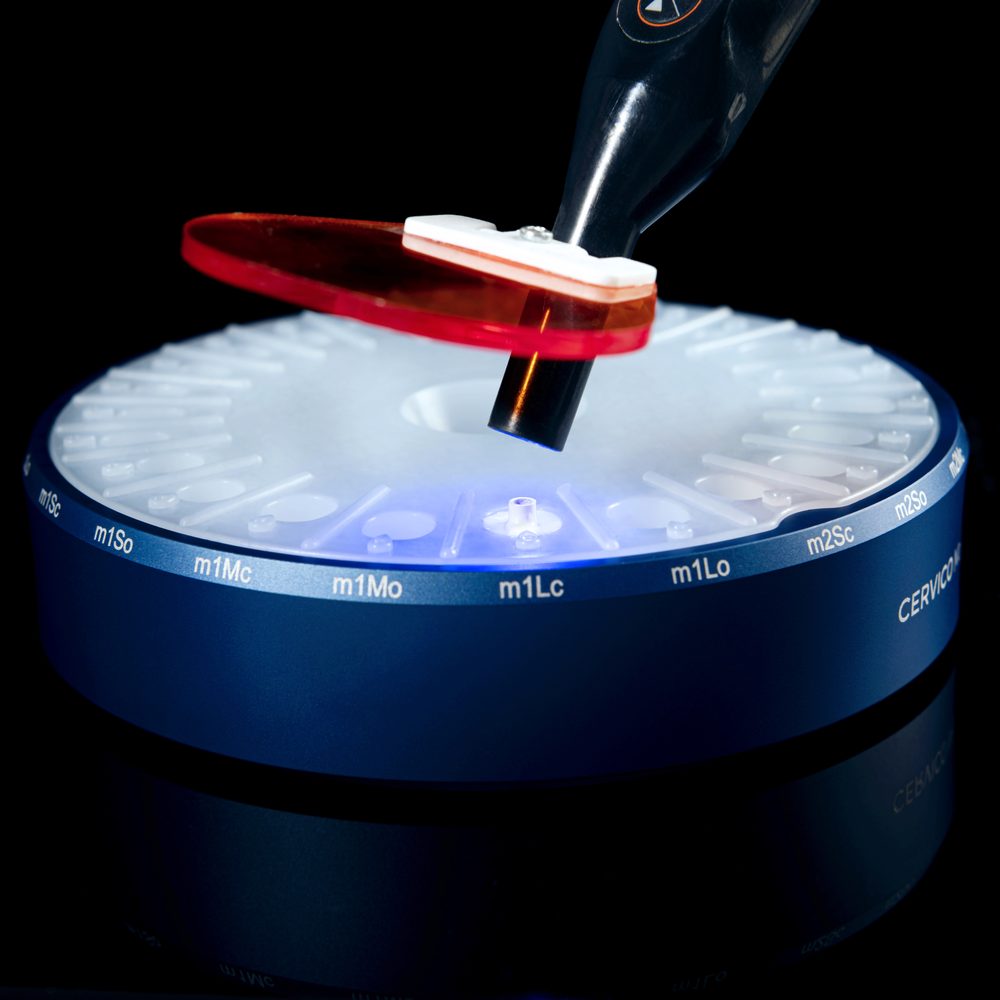

The Essential Mold is a simplified version of the Premium Mold that works directly with the stock implant analogs available from each implant company. Connect a temporary abutment to your stock lab analog, push it into the desired well, and rotate the assembly until the buccal reference on the abutment aligns with the “tear” mark on the front of the well. Fill with flowable composite, light cure, unscrew, polish, and deliver.

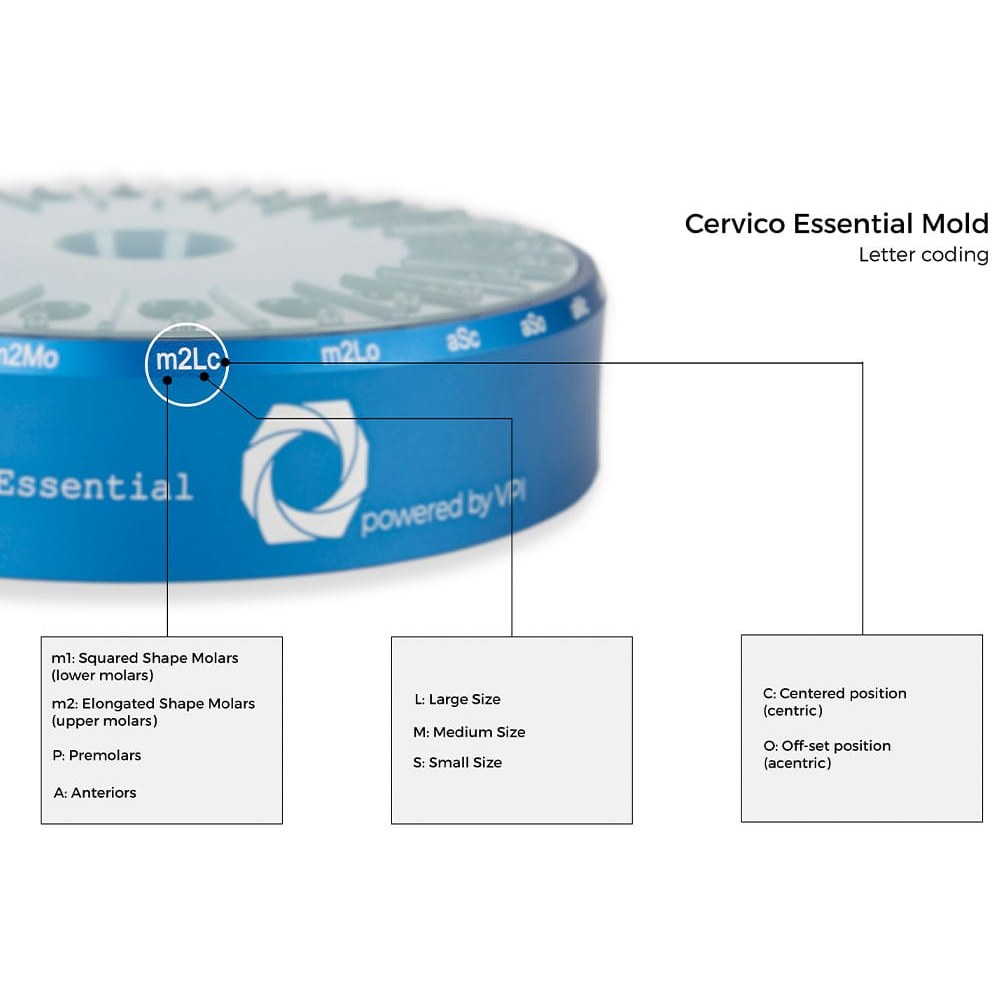

The mold contains 24 anatomical wells covering four tooth groups (a: anteriors, p: premolars, m1: lower molars, m2: upper molars), each available in three sizes (S, M, L) and two symmetry options: centered, and off-centered. Each well features a “tear” extrusion on its front surface that marks the buccal position, ensuring the abutment shape corresponds to the implant’s prosthetic connection orientation.

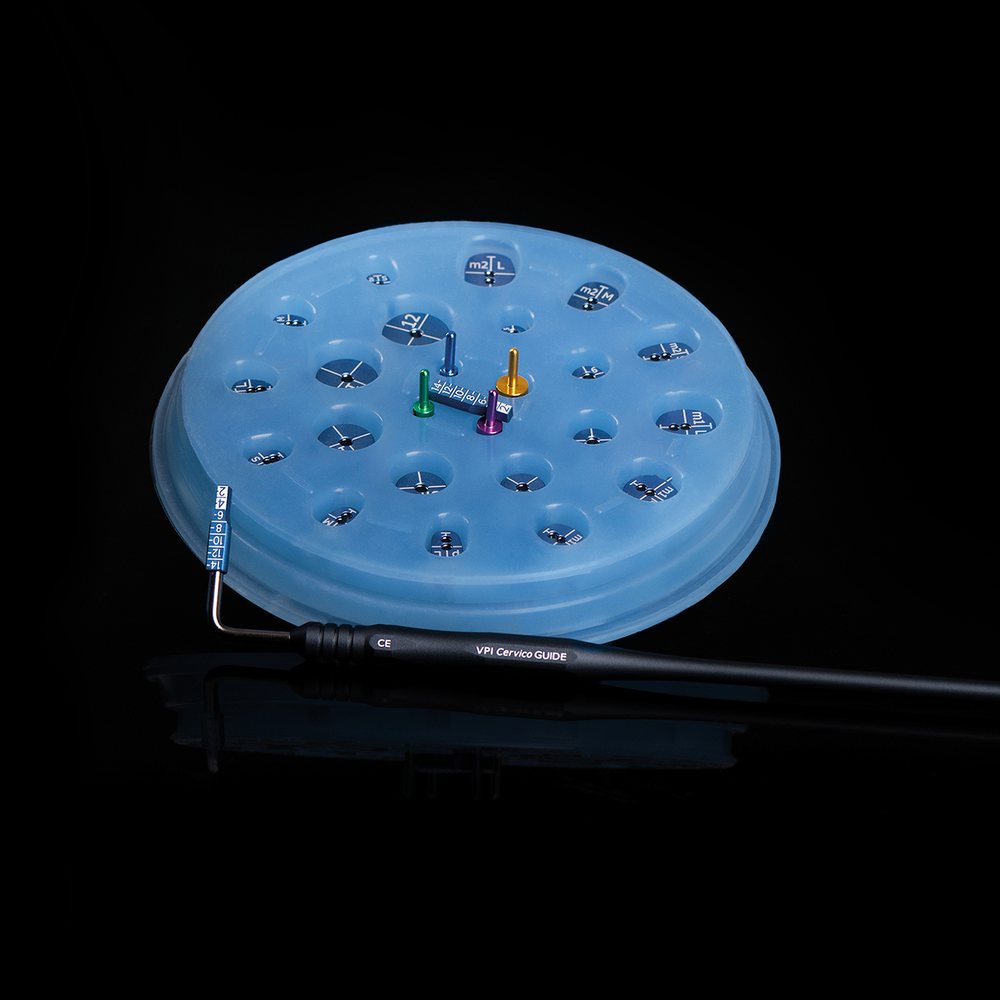

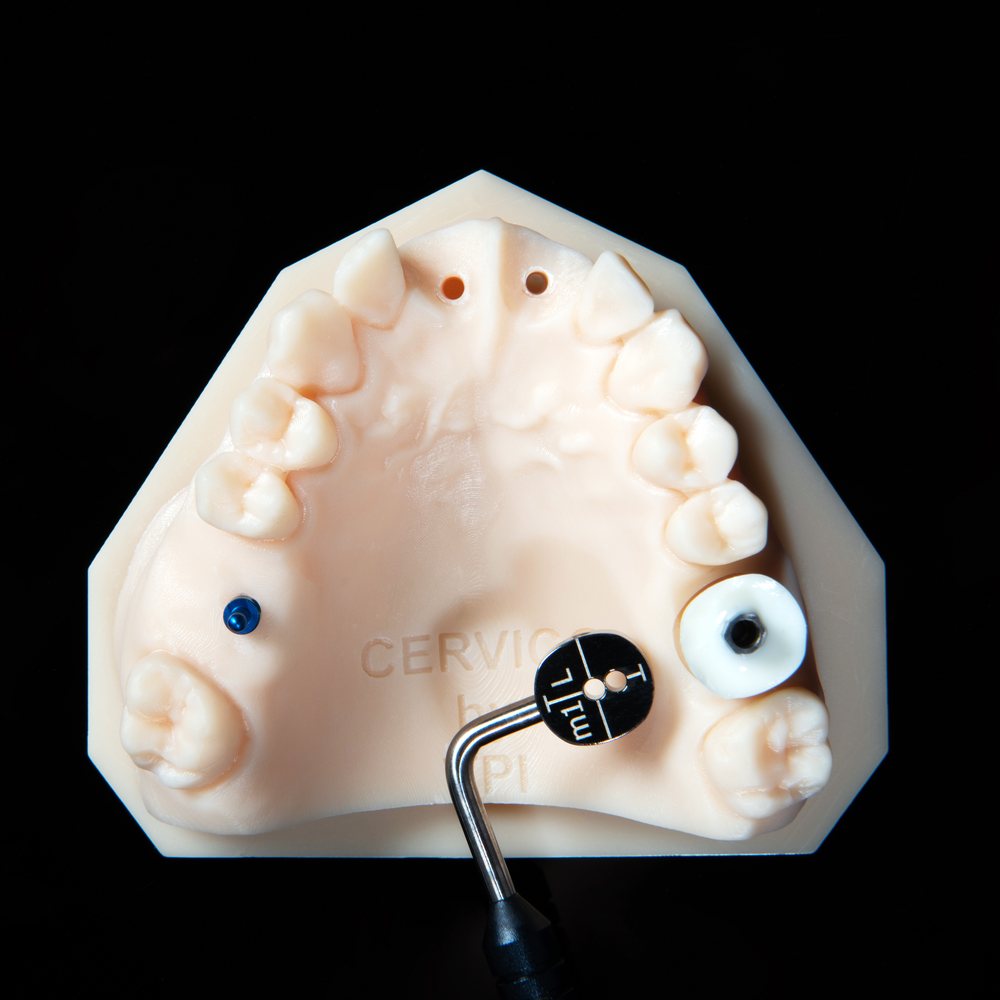

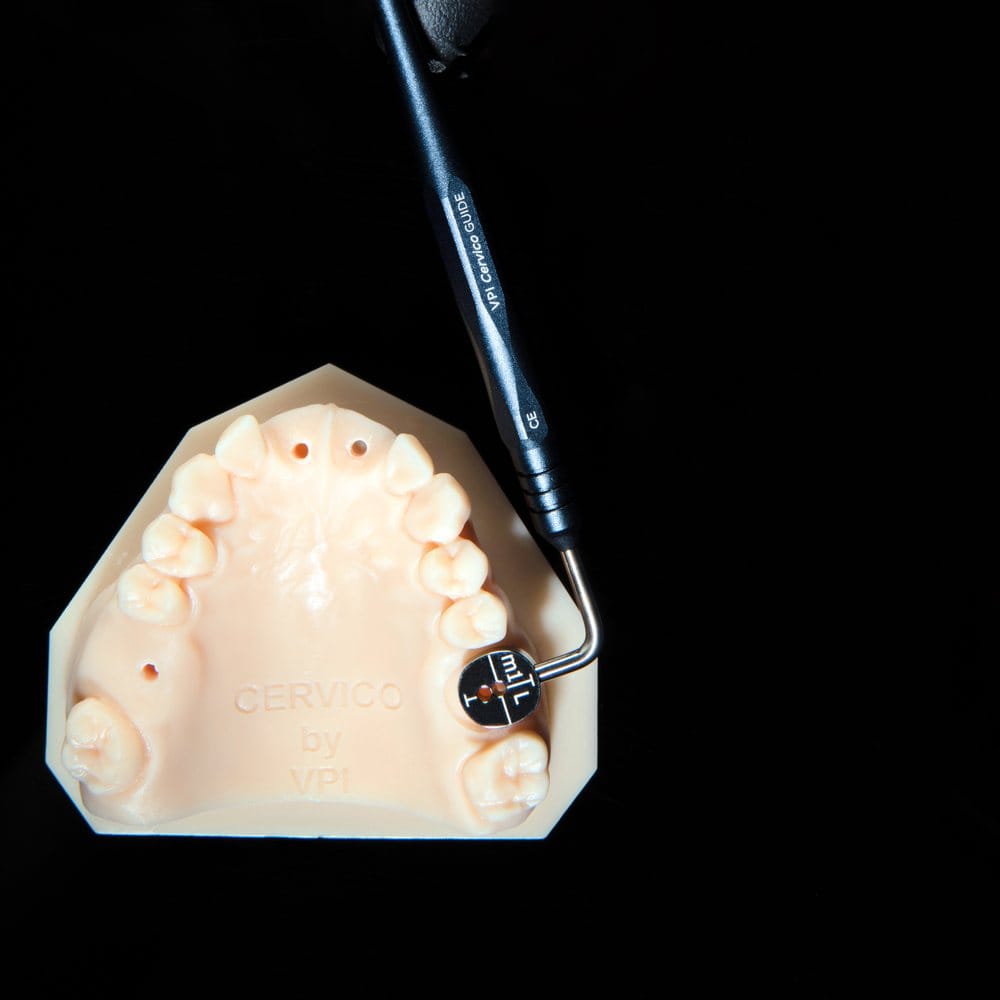

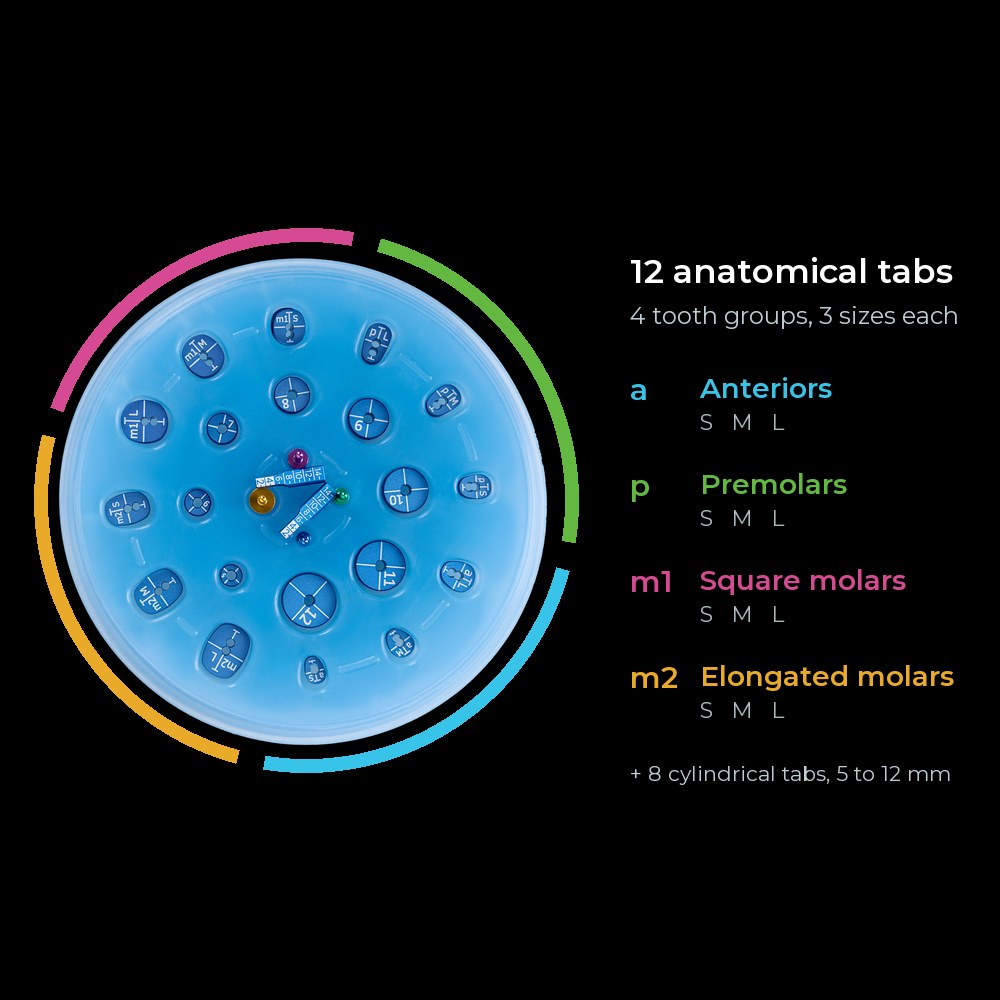

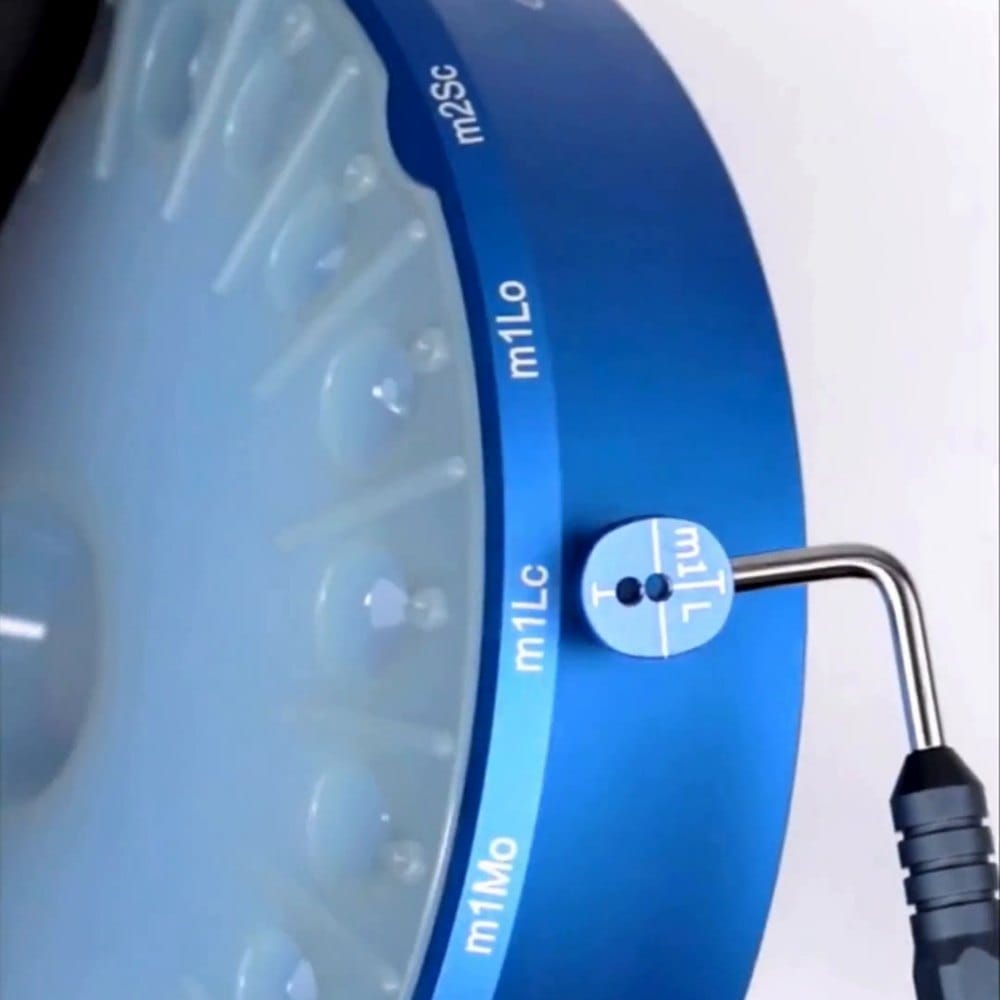

The Guide features 12 anatomical tabs across four tooth groups (anteriors, premolars, square molars, elongated molars) in small, medium, and large, plus 8 cylindrical tabs (5-12mm). The cylindrical tabs evaluate the mesio-distal space and let you drill through the central bore with a pilot drill to center your osteotomy. The anatomical tabs then mount onto positioning pins placed in the osteotomy, so you can visualize the planned healing abutment relative to the site and verify implant position at every drilling step. Each tab code maps directly to a well in the mold.
